GETTING STARTED

Welcome to the Mankati Fullscale XT Plus

To get perfect prints, you may need to experiment and tinker at the beginning.
This User Manual will guide you to start your journey with the Mankati Fullscale XT Plus easily and quickly.


Forget your existing knowledge of other 3D printers, take the time to learn about your Mankati Fullscale XT Plus, it will show you a completely new experience.
Print your idea right from now on!


Unpacking

Place Mankati Fullscale XT Plus on the floor

1

Place Mankati Fullscale XT Plus on the floor. Leave enough available space for unpacking.

Your 3D printer is packed with carton

2

Your machine is packed with carton, cardboard, foam and sealed bag to ensure the perfect status when you received it.

Remove the first cardboard layer

3

Remove the first cardboard layer. Open the plastic bag and lift it out by pulling it up gently at the left and right frames of your machine..

Caution: Be careful NOT to grip the belts or shaft of the motion system.

Hello, Mankati Fullscale XT Plus

4

“Hello, Mankati Fullscale XT Plus! “
Place your machine on a stable surface, and leave enough space surrounding it to check accessories.

Caution: When taking your 3D printer out of the box, please be careful NOT to grip the belt or shaft of the motion system.

Removing the stretch film off

5

Removing the stretch film off, you can see all the accessories, tools and filaments.


Take all the accessories out

6

Take all the accessories out.


7

Taking out the filaments:

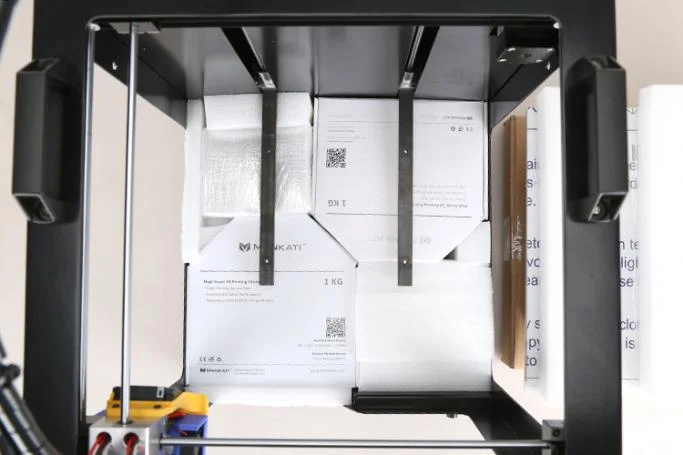

For easy and safe transport, spools of filament are fixed tightly between the build plate supporters. Take them out and follow the 3 steps below:


Connect power wire to your machine

1) Connect power wire to your machine;
2) Turn it on;


Tacking out the spools of PLA filament and feeding devices

3) Enter into LCD panel’s menu: ”Prepare > Autohome”, Then the two build plate supporters will lift to the top of Z axis;
4) Tacking out the spools of PLA filament and feeding devices.
